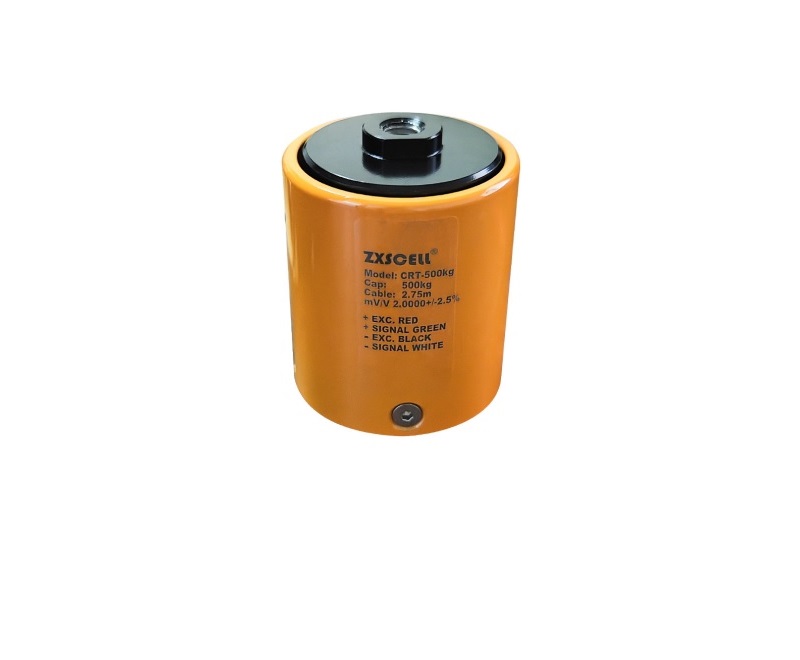

Features:
● Compression & Tension
● Aluminum alloy(≤500kg)
● Alloy steel(1t~5t)
● High protection level
● Four cores with shielded wire
Application
● material testing machine
● force detection
● force monitoring equipment
Capacities
● 5 kg , 10 kg , 20 kg , 50 kg , 100 kg , 200 kg , 250 kg , 500 kg
● 1 t , 2 t , 3 t , 5 t
Specifications
| RATED OUTPUT | 2.0(<5t) / 3.0(≥5t) mV/V ± 2.5% | INPUT IMPEDANCE | 387±50Ω |
| ACCURACY CLASS | C3 | OUTPUT IMPEDANCE | 350±5Ω |
| NONLINEARITY | ±0.03% | INSULATION IMPEDANCE | ≥ 5000MΩ |
| HYSTERESIS | ±0.03% | REPEATABILITY | ±0.03% |
| ZERO BALANCE | ±0.3%(≤100kg) / 1%(200kg~5t) | TEMP. COMPENSATED | -10 ~ +40℃ |
| CREEP | ±0.03% | SAFE TEMP. RANGE | -35 ~ +70℃ |
| TEMP. EFFE CT ON PUTPUT | ≤ 0.002% /℃ | RATED EXCITATION | 10V |
| TEMP. EFFECT ON ZERO | ≤ 0.002% /℃ | MAXIMUM EXCITATION | 15V |
| CABLE LENGTH | 2.75m | SAFE OVERLOAD | 150% |
